Monitoring

The following sections contain tips to troubleshoot Hypervisor Monitoring.

Monitoring is unusable

When the Hypervisor Dashboard is not showing any monitoring metrics, it can be caused by the following reasons.

Monitoring is unusable due to Pod being stuck in `Terminating` status

Hypervisor Monitoring pods are deployed randomly on the cluster Nodes. When the Node hosting the pods accidentally goes down, the related pods may become stuck in the Terminating status rendering the Monitoring unusable from the WebUI.

$ kubectl get pods -n cattle-monitoring-system

NAMESPACE                   NAME                                                     READY   STATUS        RESTARTS   AGE
cattle-monitoring-system    prometheus-rancher-monitoring-prometheus-0               3/3     Terminating   0          3d23h
cattle-monitoring-system    rancher-monitoring-admission-create-fwjn9                0/1     Terminating   0          137m
cattle-monitoring-system    rancher-monitoring-crd-create-9wtzf                      0/1     Terminating   0          137m
cattle-monitoring-system    rancher-monitoring-grafana-d9c56d79b-ph4nz               3/3     Terminating   0          3d23h
cattle-monitoring-system    rancher-monitoring-grafana-d9c56d79b-t24sz               0/3     Init:0/2      0          132m

cattle-monitoring-system    rancher-monitoring-kube-state-metrics-5bc8bb48bd-nbd92   1/1     Running       4          4d1h
...

Monitoring can be recovered using CLI commands to force delete the related pods. The cluster will redeploy new pods to replace them.

# Delete each none-running Pod in namespace cattle-monitoring-system.

$ kubectl delete pod --force -n cattle-monitoring-system prometheus-rancher-monitoring-prometheus-0

 pod "prometheus-rancher-monitoring-prometheus-0" force deleted

$ kubectl delete pod --force -n cattle-monitoring-system rancher-monitoring-admission-create-fwjn9

$ kubectl delete pod --force -n cattle-monitoring-system rancher-monitoring-crd-create-9wtzf

$ kubectl delete pod --force -n cattle-monitoring-system rancher-monitoring-grafana-d9c56d79b-ph4nz

$ kubectl delete pod --force -n cattle-monitoring-system rancher-monitoring-grafana-d9c56d79b-t24sz

Wait for a few minutes so that the new pods are created and readied for the Monitoring dashboard to be usable again.

$ kubectl get pods -n cattle-monitoring-system

NAME                                                     READY   STATUS     RESTARTS   AGE
prometheus-rancher-monitoring-prometheus-0               0/3     Init:0/1   0          98s
rancher-monitoring-grafana-d9c56d79b-cp86w               0/3     Init:0/2   0          27s
...

$ kubectl get pods -n cattle-monitoring-system

NAME                                                     READY   STATUS    RESTARTS   AGE
prometheus-rancher-monitoring-prometheus-0               3/3     Running   0          7m57s
rancher-monitoring-grafana-d9c56d79b-cp86w               3/3     Running   0          6m46s
...

Expand PV/Volume Size

Hypervisor integrates Longhorn as the default storage provider.

Hypervisor Monitoring uses Persistent Volume (PV) to store running data. When a cluster has been running for a certain time, the Persistent Volume may need to expand its size.

Based on the Longhorn Volume expansion guide, Hypervisor illustrates how to expand the volume size.

Fail to Enable `rancher-monitoring` Addon

You may encounter this when you install the Hypervisor v1.3.0 or higher version cluster with the minimal 250 GB disk per hardware requirements.

Reproduce Steps

Install the Hypervisor v1.3.0 cluster.
Enable the rancher-monitoring addon, you will observe:

The POD prometheus-rancher-monitoring-prometheus-0 in cattle-monitoring-system namespace fails to start due to PVC attached failed.

$ kubectl get pods -n cattle-monitoring-system
NAME                                                     READY   STATUS      RESTARTS   AGE
alertmanager-rancher-monitoring-alertmanager-0           2/2     Running     0          3m22s
helm-install-rancher-monitoring-4b5mx                    0/1     Completed   0          3m41s
prometheus-rancher-monitoring-prometheus-0               0/3     Init:0/1    0          3m21s // stuck in this status
rancher-monitoring-grafana-d6f466988-hgpkb               4/4     Running     0          3m26s
rancher-monitoring-kube-state-metrics-7659b76cc4-66sr7   1/1     Running     0          3m26s
rancher-monitoring-operator-595476bc84-7hdxj             1/1     Running     0          3m25s
rancher-monitoring-prometheus-adapter-55dc9ccd5d-pcrpk   1/1     Running     0          3m26s
rancher-monitoring-prometheus-node-exporter-pbzv4        1/1     Running     0          3m26s

$ kubectl describe pod -n cattle-monitoring-system prometheus-rancher-monitoring-prometheus-0
Name:             prometheus-rancher-monitoring-prometheus-0
Namespace:        cattle-monitoring-system
Priority:         0
Service Account:  rancher-monitoring-prometheus
...
Events:
  Type     Reason              Age                    From                     Message
  ----     ------              ----                   ----                     -------
  Warning  FailedScheduling    3m48s (x3 over 4m15s)  default-scheduler        0/1 nodes are available: pod has unbound immediate PersistentVolumeClaims. preemption: 0/1 nodes are available: 1 Preemption is not helpful for scheduling..
  Normal   Scheduled           3m44s                  default-scheduler        Successfully assigned cattle-monitoring-system/prometheus-rancher-monitoring-prometheus-0 to harv41
  Warning  FailedMount         101s                   kubelet                  Unable to attach or mount volumes: unmounted volumes=[prometheus-rancher-monitoring-prometheus-db], unattached volumes=[prometheus-rancher-monitoring-prometheus-db], failed to process volumes=[]: timed out waiting for the condition
  Warning  FailedAttachVolume  90s (x9 over 3m42s)    attachdetach-controller  AttachVolume.Attach failed for volume "pvc-bbe8760d-926c-484a-851c-b8ec29ae05c0" : rpc error: code = Aborted desc = volume pvc-bbe8760d-926c-484a-851c-b8ec29ae05c0 is not ready for workloads

$ kubectl get pvc -A
NAMESPACE                  NAME                                                                                             STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS           AGE
cattle-monitoring-system   prometheus-rancher-monitoring-prometheus-db-prometheus-rancher-monitoring-prometheus-0           Bound    pvc-bbe8760d-926c-484a-851c-b8ec29ae05c0   50Gi       RWO            hypervisor-longhorn     7m12s

$ kubectl get volume -A
NAMESPACE         NAME                                       DATA ENGINE   STATE      ROBUSTNESS   SCHEDULED   SIZE          NODE     AGE
longhorn-system   pvc-bbe8760d-926c-484a-851c-b8ec29ae05c0   v1            detached   unknown                  53687091200            6m55s

The Longhorn manager is unable to schedule the replica.

$ kubectl logs -n longhorn-system longhorn-manager-bf65b | grep "pvc-bbe8760d-926c-484a-851c-b8ec29ae05c0"

time="2024-02-19T10:12:56Z" level=error msg="There's no available disk for replica pvc-bbe8760d-926c-484a-851c-b8ec29ae05c0-r-dcb129fd, size 53687091200" func="schedule
r.(*ReplicaScheduler).ScheduleReplica" file="replica_scheduler.go:95"
time="2024-02-19T10:12:56Z" level=warning msg="Failed to schedule replica" func="controller.(*VolumeController).reconcileVolumeCondition" file="volume_controller.go:169
4" accessMode=rwo controller=longhorn-volume frontend=blockdev migratable=false node=harv41 owner=harv41 replica=pvc-bbe8760d-926c-484a-851c-b8ec29ae05c0-r-dcb129fd sta
te= volume=pvc-bbe8760d-926c-484a-851c-b8ec29ae05c0
...

Workaround

Disable the rancher-monitoring addon if you have alreay enabled it.

All pods in cattle-monitoring-system are deleted but the PVCs are retained. For more information, see [Addons].

$ kubectl get pods -n cattle-monitoring-system
No resources found in cattle-monitoring-system namespace.

$ kubectl get pvc -n cattle-monitoring-system
NAME                                                                                             STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS         AGE
alertmanager-rancher-monitoring-alertmanager-db-alertmanager-rancher-monitoring-alertmanager-0   Bound    pvc-cea6316e-f74f-4771-870b-49edb5442819   5Gi        RWO            hypervisor-longhorn   14m
prometheus-rancher-monitoring-prometheus-db-prometheus-rancher-monitoring-prometheus-0           Bound    pvc-bbe8760d-926c-484a-851c-b8ec29ae05c0   50Gi       RWO            hypervisor-longhorn   14m

Delete the PVC named prometheus, but retain the PVC named alertmanager.

$ kubectl delete pvc -n cattle-monitoring-system prometheus-rancher-monitoring-prometheus-db-prometheus-rancher-monitoring-prometheus-0
persistentvolumeclaim "prometheus-rancher-monitoring-prometheus-db-prometheus-rancher-monitoring-prometheus-0" deleted

$ kubectl get pvc -n cattle-monitoring-system
NAME                                                                                             STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS         AGE
alertmanager-rancher-monitoring-alertmanager-db-alertmanager-rancher-monitoring-alertmanager-0   Bound    pvc-cea6316e-f74f-4771-870b-49edb5442819   5Gi        RWO            hypervisor-longhorn   16m

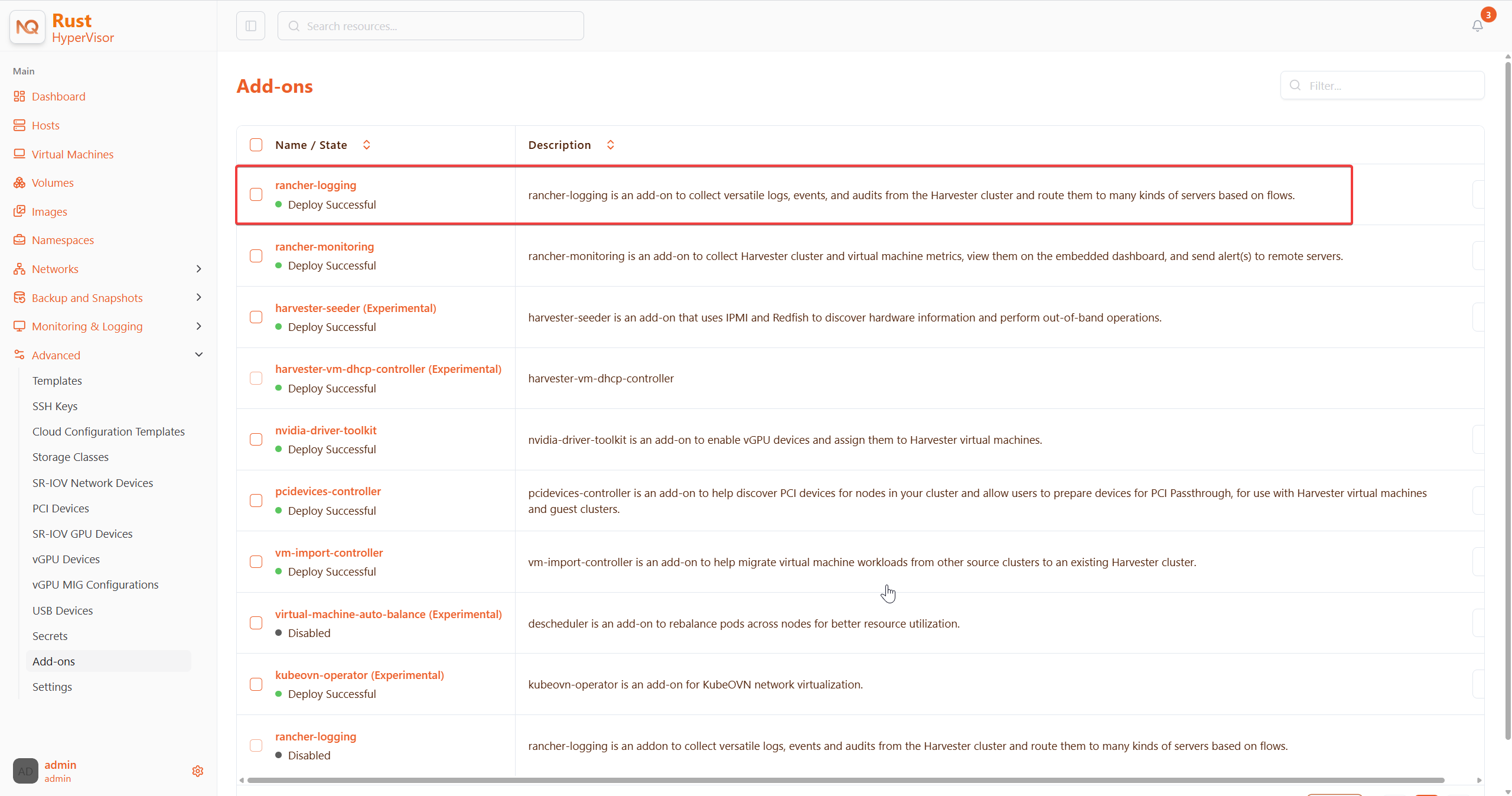

On the Addons screen of the Hypervisor UI, select ⋮ (menu icon) and then select Edit YAML.

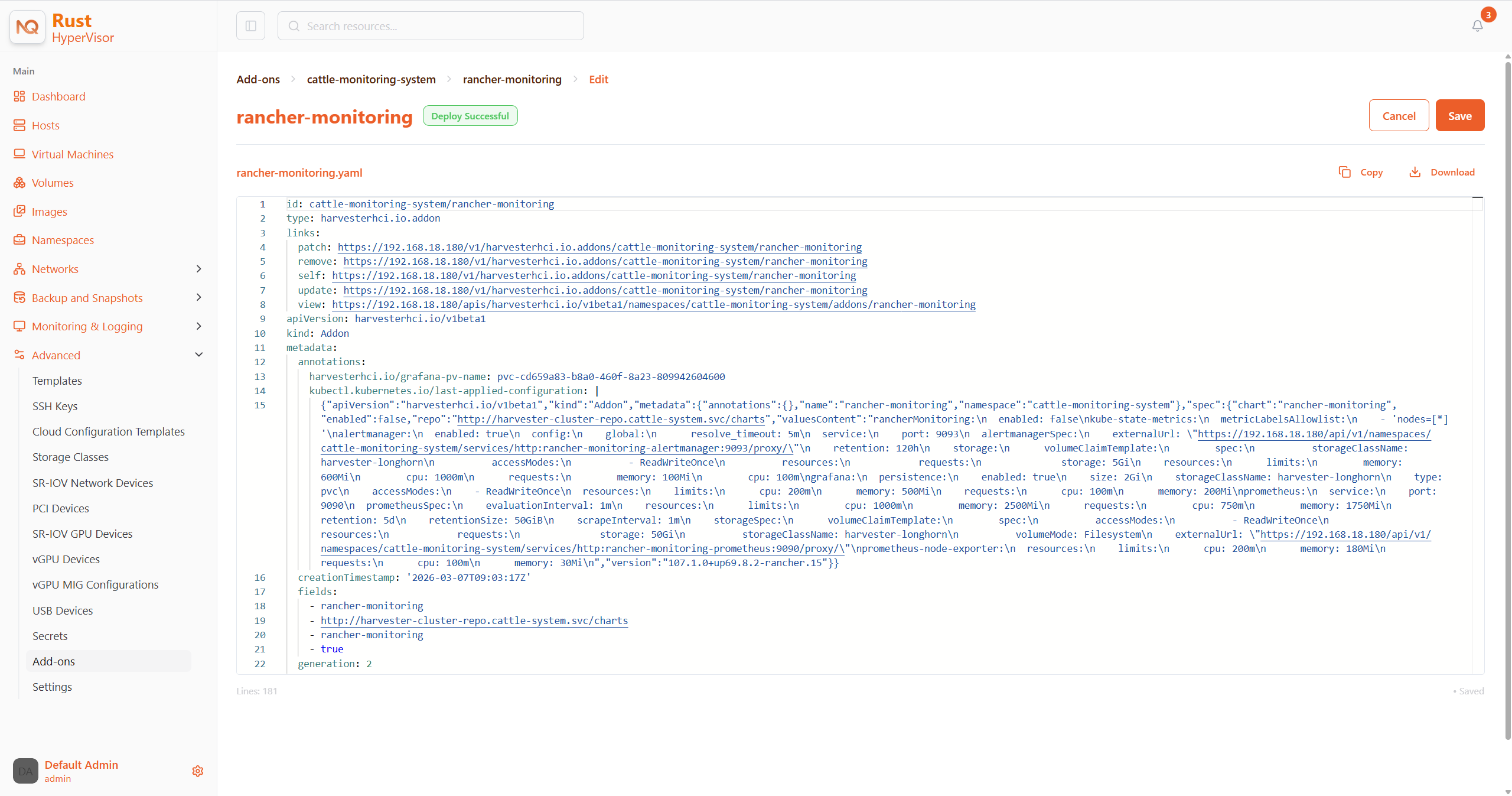

As indicated below, change the two occurrences of the number 50 to 30 under prometheusSpec, and then save. The prometheus feature will use a 30GiB disk to store data.

Alternatively, you can use kubectl to edit the object.

kubectl edit addons.hypervisorhci.io -n cattle-monitoring-system rancher-monitoring

        retentionSize: 50GiB // Change 50 to 30
        storageSpec:
          volumeClaimTemplate:
            spec:
              accessModes:
                - ReadWriteOnce
              resources:
                requests:
                  storage: 50Gi // Change 50 to 30
              storageClassName: hypervisor-longhorn

Enable the rancher-monitoring addon and wait for a few minutes..

All pods are successfully deployed, and the rancher-monitoring feature is available.

$ kubectl get pods -n cattle-monitoring-system
NAME                                                     READY   STATUS      RESTARTS   AGE
alertmanager-rancher-monitoring-alertmanager-0           2/2     Running     0          3m52s
helm-install-rancher-monitoring-s55tq                    0/1     Completed   0          4m17s
prometheus-rancher-monitoring-prometheus-0               3/3     Running     0          3m51s
rancher-monitoring-grafana-d6f466988-hkv6f               4/4     Running     0          3m55s
rancher-monitoring-kube-state-metrics-7659b76cc4-ght8x   1/1     Running     0          3m55s
rancher-monitoring-operator-595476bc84-r96bp             1/1     Running     0          3m55s
rancher-monitoring-prometheus-adapter-55dc9ccd5d-vtssc   1/1     Running     0          3m55s
rancher-monitoring-prometheus-node-exporter-lgb88        1/1     Running     0          3m55s

`rancher-monitoring-crd` ManagedChart State is `Modified`

Issue Description

In certain situations, the state of the rancher-monitoring-crd ManagedChart object changes to Modified (with the message ...rancher-monitoring-crd-manager missing...).

Example:

$ kubectl get managedchart rancher-monitoring-crd -n fleet-local -o yaml
apiVersion: management.cattle.io/v3
kind: ManagedChart
...
spec:
  chart: rancher-monitoring-crd
  defaultNamespace: cattle-monitoring-system
  paused: false
  releaseName: rancher-monitoring-crd
  repoName: hypervisor-charts
  targets:
  - clusterName: local
    clusterSelector:
      matchExpressions:
      - key: provisioning.cattle.io/unmanaged-system-agent
        operator: DoesNotExist
  version: 102.0.0+up40.1.2
...
status:
  conditions:
  - lastUpdateTime: "2024-02-22T14:03:11Z"
    message: Modified(1) [Cluster fleet-local/local]; clusterrole.rbac.authorization.k8s.io
      rancher-monitoring-crd-manager missing; clusterrolebinding.rbac.authorization.k8s.io
      rancher-monitoring-crd-manager missing; configmap.v1 cattle-monitoring-system/rancher-monitoring-crd-manifest
      missing; serviceaccount.v1 cattle-monitoring-system/rancher-monitoring-crd-manager
      missing
    status: "False"
    type: Ready
  - lastUpdateTime: "2024-02-22T14:03:11Z"
    status: "True"
    type: Processed
  - lastUpdateTime: "2024-04-02T07:45:26Z"
    status: "True"
    type: Defined
  display:
    readyClusters: 0/1
    state: Modified
...

The ManagedChart object has a downstream object named Bundle, which has similar information.

Example:

$ kubectl get bundles -A
NAMESPACE     NAME                                          BUNDLEDEPLOYMENTS-READY   STATUS
fleet-local   fleet-agent-local                             1/1
fleet-local   local-managed-system-agent                    1/1
fleet-local   mcc-hypervisor                                 1/1
fleet-local   mcc-hypervisor-crd                             1/1
fleet-local   mcc-local-managed-system-upgrade-controller   1/1
fleet-local   mcc-rancher-logging-crd                       1/1
fleet-local   mcc-rancher-monitoring-crd                    0/1                       Modified(1) [Cluster fleet-local/local]; clusterrole.rbac.authorization.k8s.io rancher-monitoring-crd-manager missing; clusterrolebinding.rbac.authorization.k8s.io rancher-monitoring-crd-manager missing; configmap.v1 cattle-monitoring-system/rancher-monitoring-crd-manifest missing; serviceaccount.v1 cattle-monitoring-system/rancher-monitoring-crd-manager missing

when you search for the objects marked as missing, you will find that they exist in the cluster.

Example:

$ kubectl get clusterrole rancher-monitoring-crd-manager
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    meta.helm.sh/release-name: rancher-monitoring-crd
    meta.helm.sh/release-namespace: cattle-monitoring-system
  creationTimestamp: "2023-01-09T11:04:33Z"
  labels:
    app: rancher-monitoring-crd-manager
    app.kubernetes.io/managed-by: Helm
  name: rancher-monitoring-crd-manager
  ...
rules:
- apiGroups:
  - apiextensions.k8s.io
  resources:
  - customresourcedefinitions
  verbs:
  - create
  - get
  - patch
  - delete

$ kubectl get clusterrolebinding rancher-monitoring-crd-manager
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  annotations:
    meta.helm.sh/release-name: rancher-monitoring-crd
    meta.helm.sh/release-namespace: cattle-monitoring-system
  creationTimestamp: "2023-01-09T11:04:33Z"
  labels:
    app: rancher-monitoring-crd-manager
    app.kubernetes.io/managed-by: Helm
  name: rancher-monitoring-crd-manager
  ...
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: rancher-monitoring-crd-manager
subjects:
- kind: ServiceAccount
  name: rancher-monitoring-crd-manager
  namespace: cattle-monitoring-system

$ kubectl get configmap -n cattle-monitoring-system rancher-monitoring-crd-manifest
apiVersion: v1
data:
  crd-manifest.tgz.b64: ...
kind: ConfigMap
metadata:
  annotations:
    meta.helm.sh/release-name: rancher-monitoring-crd
    meta.helm.sh/release-namespace: cattle-monitoring-system
  creationTimestamp: "2023-01-09T11:04:33Z"
  labels:
    app.kubernetes.io/managed-by: Helm
  name: rancher-monitoring-crd-manifest
  namespace: cattle-monitoring-system
  ...

$ kubectl get ServiceAccount -n cattle-monitoring-system rancher-monitoring-crd-manager
apiVersion: v1
kind: ServiceAccount
metadata:
  annotations:
    meta.helm.sh/release-name: rancher-monitoring-crd
    meta.helm.sh/release-namespace: cattle-monitoring-system
  creationTimestamp: "2023-01-09T11:04:33Z"
  labels:
    app: rancher-monitoring-crd-manager
    app.kubernetes.io/managed-by: Helm
  name: rancher-monitoring-crd-manager
  namespace: cattle-monitoring-system
  ...

Root Cause

The objects that are marked as missing do not have the related annotations and labels required by the ManagedChart object.

Example:

One of the manually recreated object:

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    meta.helm.sh/release-name: rancher-monitoring-crd
    meta.helm.sh/release-namespace: cattle-monitoring-system
    objectset.rio.cattle.io/id: default-mcc-rancher-monitoring-crd-cattle-fleet-local-system   # This required item is not in the above object.
  creationTimestamp: "2024-04-03T10:23:55Z"
  labels:
    app: rancher-monitoring-crd-manager
    app.kubernetes.io/managed-by: Helm
    objectset.rio.cattle.io/hash: 2da503261617e9ea2da822d2da7cdcfccad847a9    # This required item is not in the above object.
  name: rancher-monitoring-crd-manager
...
rules:
- apiGroups:
  - apiextensions.k8s.io
  resources:
  - customresourcedefinitions
  verbs:
  - create
  - get
  - patch
  - delete
  - update

Workaround

Patch the ClusterRole object rancher-monitoring-crd-manager to add the update operation.

$ cat > patchrules.yaml << EOF
rules:
- apiGroups:
  - apiextensions.k8s.io
  resources:
  - customresourcedefinitions
  verbs:
  - create
  - get
  - patch
  - delete
  - update
EOF

$ kubectl patch ClusterRole rancher-monitoring-crd-manager --patch-file ./patchrules.yaml --type merge

$ rm ./patchrules.yaml

Patch the marked as missing objects to add the required annotations and labels.

$ cat > patchhash.yaml << EOF
metadata:
  annotations:
    objectset.rio.cattle.io/id: default-mcc-rancher-monitoring-crd-cattle-fleet-local-system
  labels:
    objectset.rio.cattle.io/hash: 2da503261617e9ea2da822d2da7cdcfccad847a9
EOF

$ kubectl patch ClusterRole rancher-monitoring-crd-manager --patch-file ./patchhash.yaml --type merge

$ kubectl patch ClusterRoleBinding rancher-monitoring-crd-manager --patch-file ./patchhash.yaml --type merge

$ kubectl patch ServiceAccount rancher-monitoring-crd-manager -n cattle-monitoring-system --patch-file ./patchhash.yaml --type merge

$ kubectl patch ConfigMap rancher-monitoring-crd-manifest -n cattle-monitoring-system --patch-file ./patchhash.yaml --type merge

$ rm ./patchhash.yaml

Check the rancher-monitoring-crd ManagedChart object.

After a few seconds, the status of the rancher-monitoring-crd ManagedChart object changes to Ready.

$ kubectl get managedchart -n fleet-local rancher-monitoring-crd -oyaml
apiVersion: management.cattle.io/v3
kind: ManagedChart
metadata:
...
  name: rancher-monitoring-crd
  namespace: fleet-local
...
status:
  conditions:
  - lastUpdateTime: "2024-04-22T21:41:44Z"
    status: "True"
    type: Ready
...

Also, error indicators are no longer displayed for the downstream objects.

$ kubectl bundle -A
NAMESPACE     NAME                                          BUNDLEDEPLOYMENTS-READY   STATUS
fleet-local   fleet-agent-local                             1/1
fleet-local   local-managed-system-agent                    1/1
fleet-local   mcc-hypervisor                                 1/1
fleet-local   mcc-hypervisor-crd                             1/1
fleet-local   mcc-local-managed-system-upgrade-controller   1/1
fleet-local   mcc-rancher-logging-crd                       1/1
fleet-local   mcc-rancher-monitoring-crd                    1/1

(Optional) Retry the upgrade (if previously unsuccessful because of this issue).

Some `rancher-monitoring` Add-On Pods Are Abruptly Terminated

Issue Description

When the rancher-monitoring add-on is enabled, pods related to Prometheus, Alertmanager, and Grafana are terminated shortly after they are created.

Example:

$ kubectl -n cattle-monitoring-system get pods,svc,ep,deploy,pvc,sts,prometheus,alertmanager | grep -E 'stateful|deploy'

deployment.apps/rancher-monitoring-grafana              0/0     0            0           7h52m
deployment.apps/rancher-monitoring-kube-state-metrics   1/1     1            1           7h52m
deployment.apps/rancher-monitoring-operator             1/1     1            1           7h52m
deployment.apps/rancher-monitoring-prometheus-adapter   1/1     1            1           7h52m
statefulset.apps/alertmanager-rancher-monitoring-alertmanager   0/0     7h52m
statefulset.apps/prometheus-rancher-monitoring-prometheus       0/0     7h52m

The prometheus pod logs contain the message level=warn msg="Received SIGTERM, exiting gracefully...".

log from prometheus pod:

...
ts=2025-05-20T05:41:02.847Z caller=kubernetes.go:327 level=info component="discovery manager notify" discovery=kubernetes config=config-0 msg="Using pod service account via in-cluster config"
ts=2025-05-20T05:41:02.880Z caller=main.go:1261 level=info msg="Completed loading of configuration file" filename=/etc/prometheus/config_out/prometheus.env.yaml totalDuration=35.457401ms db_storage=998ns remote_storage=1.45Âµs web_handler=392ns query_engine=1.095Âµs scrape=34.384Âµs scrape_sd=515.81Âµs notify=10.226Âµs notify_sd=82.314Âµs rules=32.514863ms tracing=2.344Âµs
ts=2025-05-20T05:41:50.044Z caller=main.go:854 level=warn msg="Received SIGTERM, exiting gracefully..."
ts=2025-05-20T05:41:50.044Z caller=main.go:878 level=info msg="Stopping scrape discovery manager..."
ts=2025-05-20T05:41:50.044Z caller=main.go:892 level=info msg="Stopping notify discovery manager..."
...

The prometheus CRD object includes the storage-network.settings.hypervisorhci.io/replica: "1" annotation.

- apiVersion: monitoring.coreos.com/v1
  kind: Prometheus
  metadata:
    annotations:
      meta.helm.sh/release-name: rancher-monitoring
      meta.helm.sh/release-namespace: cattle-monitoring-system
      storage-network.settings.hypervisorhci.io/replica: "1"
    creationTimestamp: "2025-05-20T06:40:25Z"

The Hypervisor pod logs ('hypervisor-system/hypervisor' deployment) indicate that the attempt to change the storage-network setting was blocked.

...
2025-05-20T08:13:49.842448311Z time="2025-05-20T08:13:49Z" level=info msg="storage network change: {\"vlan\":955,\"clusterNetwork\":\"k8s-storage\",\"range\":\"198.18.2.0/24\"}"
2025-05-20T08:13:49.842476305Z time="2025-05-20T08:13:49Z" level=info msg="rancher monitoring not found. skip"
2025-05-20T08:13:49.842479072Z time="2025-05-20T08:13:49Z" level=info msg="current Grafana replicas: 0"
2025-05-20T08:13:49.842480501Z time="2025-05-20T08:13:49Z" level=info msg="VM import controller no found. skip"
2025-05-20T08:13:49.851381877Z time="2025-05-20T08:13:49Z" level=error msg="error syncing 'storage-network': handler hypervisor-storage-network-controller: Waiting for all volumes detached: pvc-6f66d234-f9c2-453e-8c17-383d9b489956,pvc-07c626f5-5135-4783-952d-cc20b1607cb5,pvc-1cfd6efe-c928-42e5-a834-8c27ed0e4897,pvc-5ce98d0a-5da1-4f30-af14-a8de29233380,pvc-1c9b7c9a-4943-4462-9082-217f9988cfc5,pvc-e9d92bfd-63c7-4ae3-ba00-1ce209f12caa,pvc-205ba31d-35fb-44f6-a3c4-c53001ec0dd6,pvc-6b5a7d11-7578-4397-9e13-ab475fe91463,pvc-669c69dd-93ad-4304-a340-484f7108362b,pvc-7668c486-b688-4524-b359-0cf9ec21cbc0,pvc-7d294996-821f-4434-ae4f-55a6de67f28c,pvc-216333c6-73f9-4e68-ac8b-53ab95a1f138,pvc-f72ca889-70c9-4dd9-bcec-a17ab65a1df4,pvc-01895fab-12f8-452a-9161-7d3c01e22726,pvc-330caa2d-5fdc-42f2-8c53-c5f80044760f,pvc-9506b7d0-c2d5-41f2-a08b-d7bc22dddb88,pvc-3e2b46d4-c471-44a9-9765-64babdb6ceed,pvc-25fe3372-1802-46d5-abf1-039099c567e2,pvc-b16fb262-cb38-4438-b074-84c7ad080a15,pvc-757c0f22-4ed6-4669-844d-cd7a87ceb26e,pvc-e0d99d8f-581f-4be6-baa3-d345308c9330,pvc-f5e1e19d-3dfb-4be1-9354-c092d7f03009,pvc-383ec26a-51f6-4f9d-8d8a-179651846d92,pvc-0d8f5737-c6e4-4f55-8d19-cf7a785552fc,pvc-5091892e-faf2-47b1-b987-bbde1ab2c13a,pvc-6f0c97ae-dfda-4799-bf26-e85feace5414,pvc-b0f717af-8a79-4c4e-b82e-90dedeae7697,pvc-ffe982d5-5ff1-40aa-a0db-cc10360d2d89,pvc-370757e2-4bce-41e7-b6f7-95aa8a5e8cf1,pvc-5a77d3e3-d555-476c-840f-7b9dadeb7478,pvc-43987c88-99b1-4889-9a47-5261717fe265,pvc-9f675704-9c52-46c2-96bf-2ff83d805383,pvc-d0b4e1d0-9bcd-4a8a-b52c-e1d8062a8099,pvc-a29be31f-531f-409a-bf5a-d267a54e2edb, requeuing"
...

Root Cause

When you make changes to the storage-network setting, the Hypervisor controller waits for the attached volumes to be detached before applying the changes. In addition, the controller automatically terminates the pods related to Prometheus, Alertmanager, and Grafana because those pods use volumes to store data.

This process usually takes a short time to complete, but can be disrupted when the following occur:

Attached volumes prevent the Hypervisor controller from applying the changes to the setting.
A user or the monitoring-operator attempts to enable the rancher-monitoring add-on.
The Hypervisor controller terminates the pods.

Workaround

Disable the rancher-monitoring add-on.
Check if the storage-network setting is enabled or disabled.
Check for error indicators in the Hypervisor pod logs. If volumes are still attached, stop the related virtual machines until no errors appear after the storage network change message.
Enable the rancher-monitoring add-on.

Monitoring is unusable​

Monitoring is unusable due to Pod being stuck in Terminating status​

Expand PV/Volume Size​

Fail to Enable rancher-monitoring Addon​

Reproduce Steps​

Workaround​

rancher-monitoring-crd ManagedChart State is Modified​

Issue Description​

Root Cause​

Workaround​

Some rancher-monitoring Add-On Pods Are Abruptly Terminated​

Issue Description​

Root Cause​

Workaround​

Monitoring is unusable

Monitoring is unusable due to Pod being stuck in `Terminating` status

Expand PV/Volume Size

Fail to Enable `rancher-monitoring` Addon

Reproduce Steps

Workaround

`rancher-monitoring-crd` ManagedChart State is `Modified`

Issue Description

Root Cause

Workaround

Some `rancher-monitoring` Add-On Pods Are Abruptly Terminated

Issue Description

Root Cause

Workaround
